Station placement matters: DTX goes down Pennsylvania

San Francisco’s Downtown Rail Extension (DTX) route has been decided. The San Francisco Planning Department selected the “Pennsylvania” option as the preferred alignment to bring Caltrain and high-speed rail to the Transbay Transit Center.

A vision of Caltrain stops in San Francisco once DTX opens. Blue shows walk distance up to 1/3 mile and orange is a 10 minute bus or Muni Metro ride.

Now what?
Let’s open the question of where the new stations on the line should go. Assuming they should be placed where they are today assumes that the location decisions may 50-100 years ago is the best for today.

New Caltrain vehicles will be coming.

There are many questions about financing the project, who will build it, what’s needed to be cleared environmentally, how long will it take, and when will it actually open. I won’t be addressing those questions. I don’t have the answers but will say, fund it, and HURRY UP!

I’m here to discuss the stations and where to put them. A lot of thought goes into these mega projects, but sometimes, due to complexity, some items are given less attention than they deserve. What am I getting at? I’m saying, we have a new tunnel, which will have new and more frequent service, yet we haven’t discussed station locations and often assume that the existing ones are fine without asking ourselves, where would the best station locations actually be?

Cities are messy, exciting, thriving and complicated places that have projects that must adapt to the existing city.  Yet, we have here, with the Downtown Rail Extension (DTX), a chance to decide where to place our stations. And when we decide where to place stations, let’s make sure they have a solid and easy transfer to a future 2nd Transbay Crossing. We don’t want to have a “missed connection” in which stations are too far apart and require a long transfer or don’t even allow a transfer. Imagine, if the highway system had created one freeway, but a 2nd crossing freeway was built, that it just missed the first, or didn’t offer a connection. Would seem silly (but does exist, rarely.)

Transbay Center’s decorative skin.

What’s most important?

1. DTX – Peninsula rail access into Downtown San Francisco: Getting Caltrain passengers and High Speed Rail passengers into Downtown San Francisco is critical. More people will use Caltrain once it gets to the Salad Spinner Transit Center (err, Transbay Transit Center), and fewer people will “have to” drive.

2. Connections to other transit: Making easy, short, and legible transfers between stations so people can get to where they need to go easily. That means making Caltrain and BART have great transfers. The BART to Caltrain transfer between Embarcadero and Transbay Center will be long and isn’t even certain of being built. So let’s make sure a 2nd Transbay rail line makes a great transfer with Caltrain, whether it’s in Downtown, at 4th & King or in Mission Bay.

3. Stations located where ridership demand is and will be the highest. Why have a station where few people will use it. Let’s make stations be where the most people can benefit from them, whether they live nearby, work nearby, shop nearby, go to school nearby or take their kids to school or daycare nearby.


What’s set in stone, and what do we have?

Based on the Pennsylvania Alignment and the existing rail line through San Francisco we have two things that are pretty much set in stone:

1. Stations: Only the Transbay Transit Center (aka Salesforce Transit Center) or “Salad Spinner” for short is set. This location isn’t moving. All other stations current, past, or planned are not set because we’re building a new tunnel. A new tunnel will require new stations to be built, whether they’re in the same place as their current location or in a new place.

2. Alignment: now that the Penn alignment is picked, and the existing rail from Potrero Hill to Brisbane is set, we can know where tracks are and will go.

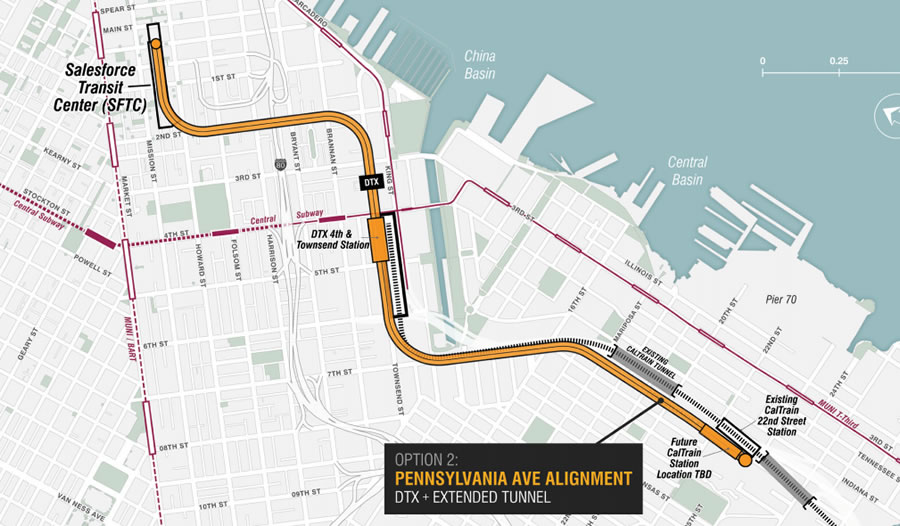

SF Planning’s preferred Pennsylvania Ave alignment that was chosen over the Mission Bay (Third St) alignment.

What’s fluid, pending or undecided?

3. Location of other stations between Downtown San Francisco and South San Francisco. I’ll be focusing on San Francisco’s station options.

4. Alignment and station locations of a BART 2nd Transbay Crossing.

5. Will the Salad Spinner (aka Salesforce Transit Center) have trains punch out to the east to reach Oakland, or loop back? Will it become a through station, or a stub end station with more limited capacity in the long run?

6. Where and how will passengers using Caltrain/HSR get across the bay to reach Oakland, especially along a new 2nd Transbay Crossing? Will it follow a through train crossing the bay to Oakland? Will riders make the 900+ foot walk to BART’s Embarcadero Station or make a transfer to a new 2nd Transbay BART line that’s a shorter walk?

I won’t be answering #5 or #6 but will attempt to answer #3 and #4.

Let’s see if stations should stay at their existing locations, be relocated, and where new stations should be. A preliminary note: train stations don’t often have a single cross street or entry point. All these stations are actually a long rectangle box that often have exits on each end and in the middle. I’ve assumed that stations are about 700 feet long, especially for BART trains.
Current and planned stations:

1. Transbay Center (planned)
2. Fourth and Townsend (Fourth and King currently)
3. 22nd Street
4. Oakdale (planned)
5. Bayshore

If we step back, let’s look at where these stations are. Would a 2nd new BART line go through it? Are they working well as station locations? Could the be better designed? Or would a new location be better? First we’ll look at the priorities in placing a 2nd BART line through San Francisco, then at the stations.

2nd Transbay BART:
A second transbay BART line could go in a number of locations where it crosses Caltrain, but it’s most likely to pass through SoMa, Mission Bay or both. Anywhere between 16th Street and Market is a potential alignment area for BART.  Bottom line – we must make a key priority be that a great (efficient, quick and humane) transfer location between Caltrain and BART be actively pursued and built.

The risk is that without a chosen 2nd Bay Crossing alignment, the transfer point between BART and Caltrain will be missing or weak.

Possibilities (map forthcoming)

Stations
Transbay Center – aka Salad Spinner Center
As mentioned above, not moving. Also, located right at the center of our 21st century downtown San Francisco.

Transfer Station: A 2nd Transbay BART line could pass here and create a great transfer if it were located along 2nd Street, Main Street, Mission Street or Howard Street. Anywhere else, such as the proposed 3rd Street BART alignment, is too far away (i.e. from First & Minna at the center of the train station, it’s nearly half a mile to a 3rd and Mission BART station. A transfer to the existing BART & Muni station at Embarcadero is good, but at 900 feet long, the pedestrian tunnel to connect under Beale Street cannot be considered an optimal transfer.

As shown in the map below, a 2nd Street BART station would be within the quarter mile walk shed of the planned main exits of the train center onto First and Fremont Streets. With a connecting tunnel from the west end of the Transbay Center to 2nd St for BART, the connection is quite close.

Local bus: Ten regular Muni bus lines and three express bus lines will be stoping at the new Transbay Center. Connections to the city are considerable, with many more bus lines available on Market Street. The orange lines show which frequent buses stop at Transbay: 5-Fulton, 7-Haight/Noriega, 14-Mission and 38-Geary

Quarter and Third Mile walk sheds from the Transit Center’s Fremont and First Street exits. Orange lines denote transit lines that serve the station and reach out to a 10 minute journey time.

Fourth Street
Neighborhood: The station here is located in a decent place – near the existing SoMa job sites and housing, as well as pretty close to Mission Bay and the future dense Central SoMa area along 4th & 5th streets south of the freeway. Sports is big here: AT&T Park is 1,400′ away, while the Warriors Arena is almost a mile away, 4,500′ to be exact.

Transfer Station: It’s unclear whether a BART line would pass here, but there’s a decent chance it will. The best options for getting close are by passing along 3rd St, 4th St, or 5th St. A station along King St, or Bluxome might work too, although more tricky.

The Muni Metro Lines, T-Third, and N-Judah, have stations along Fourth Street and King Street respectively.

Local bus: Four regular Muni bus and 3 express buses stop here, taking folks to Downtown, Van Ness, Chinatown and the Marina. Unfortunately, no buses or transit take folks to the nearby Mission District.

Townsend Station between 5th and 4th Streets as currently planned. Quarter mile (dark blue) and third-mile (light blue) walk sheds.  Orange lines denote transit lines that serve the station and reach out to a 10 minute journey time.  Note the walk shed is better at accessing points in Central SoMa and less so in Mission Bay south of Mission Creek.

Townsend Station between 3rd and 4th Streets as I have proposed. Quarter mile (dark blue) and third-mile (light blue) walk sheds.  Orange lines denote transit lines that serve the station and reach out to a 10 minute journey time.  Note the walk shed is better at accessing points in Mission Bay south of Mission Creek, and a potential 3rd Street BART station while still also access Central SoMa.

Solution: The currently planned station will be underground and location under Townsend between 4th and 5th streets. Fourth Street has a bridge that crosses Mission Creek. Fifth Street does not. In addition, 5th Street doesn’t currently offer any connection to King Street or Berry. From a station area access perspective, the station would be better located one block east – between Third and Fourth streets, both of which cross Mission Creek. In addition, BART may follow Third Street, and this block further east is higher ground, and less vulnerable to flooding from rising seas. (and don’t tell me to not worry, not EVERY sea level protection project will be built.)

One downside of moving the station east one block would mean a slightly longer walk to the new Central SoMa development employment centers on 5th Street and 6th Street. The shorter distance to the Transbay Center (from 6,300 feet (1,900m) to 5,250 feet (1,600m)) may seem like a bad idea, but many examples in the world, including Chicago, London, Paris and Tokyo have regional trains with closer spaced stations in the city center.

Bottom line: a Caltrain station on Townsend between Third and Fourth gets you:

• Short transfer to T-Third
• Short transfer to a new BART line on 3rd or 4th streets
• A block long transfer to N-Judah
• Higher ground station location
• Easy pedestrian access to BOTH the bridges on 3rd Street and 4th Street

22nd Street
Neighborhood: Simply put, this station is in a rotten location. Hemmed against a hillside with little access, and in a low density neighborhood with industrial uses, the station isn’t even near transit corridors. True, the Dogpatch is doubling or even tripling in population, but that’s starting from a low number.

Solution: Move the station, north, south or both to a transit corridor or place with higher density development and better transit access. Best bet is to 16th Street, but Cesar Chavez could work too if the Islais Creek area densifies with jobs and housing as the Resilient by Design project proposes.

22nd St Station under Pennsylvania Ave  – Quarter mile (dark blue) and third-mile (light blue) walk sheds plus moderate frequent bus lines (orange) are shown.

Cesar Chavez
Neighborhood: Although no much in the way of dense jobs or dense housing exists along the Cesar Chavez or even the Evans corridor, a station here might make sense if densification is planned.

Local bus: No busses currently serve the potential station location, Cesar Chavez at Pennsylvania Ave. However, if a station were placed here, replacing 22nd St, the 48-Quintara could be moved to stop at the station.


Solution: Due to its proximity to the Oakdale station, locating a station here is less necessary, especially if a 16th Street station is created.

Cesar Chavez Station at Pennsylvania Ave  – Quarter mile (dark blue) and third-mile (light blue) walk sheds plus moderate frequent bus lines (orange) are shown.

16th Street Mississippi
If we open the question of where to place stations, might not we consider adding a station in San Francisco. We are a denser city, with much growth happening in the east side of the city. Might a new or relocated station at 16th St in Mission Bay bring more people closer to their homes and jobs than 22nd St?


Neighborhood: With Mission Bay to the east, and an evolving and densifying Potrero Flats to the east, while having a major transit corridor in the works (22-Fillmore bus), this location would be ideal for a station. The stop would serve jobs and schools with UCSF Mission Bay and the Medical Center, as well as CCA, and the many health and biotech jobs in the area. A stop here would also serve the Chase Center (Warriors Arena). As station here would also serve many more people living and working nearby than at 22nd Street.

The perceived down side with 16th Street is that its rather close to the 4th & Townsend station (about 3,300 feet). However, as mentioned before, many regional rail lines have closer spaced stations in and near the Downtown core. Some comparatively close station examples include:

Paris: RER B, Chatelet to Sain Michel, 3,200 feet
London: Waterloo East station to Charing Cross Road Station, 4,000 feet
Chicago: Metra Electric, Millennium Station to Van Buren Station, 2,800 feet.

Solution: Close the 22nd Street station and relocate to 16th Street.

16th St Mission Bay Station at Mississippi and 7th St  – Quarter mile (dark blue) and third-mile (light blue) walk sheds plus moderate frequent bus lines (orange) are shown.

Map of both Mission Bay stations if both 16th St Mission Bay and Townsend Station between 4th and 3rd streets were built.

Oakdale
Neighborhood: Residents of the Bayview and the growing Hunters Point neighborhood deserve and should have a regional rail station – especially considering the rail line already passes through the neighborhood.

Solution: Keep proposed Oakdale Station location between Oakdale and Quint Streets. Improve local transit feeding the station. More on this from the SFCTA’s study. When this station does get planned, addressing gentrification, housing and displacement challenges must also be addressed.

Oakdale Station at Quint – Quarter mile (dark blue) and third-mile (light blue) walk sheds plus moderate frequent bus lines (orange) are shown.

In analysis and summary having the following stations is recommended:

1. Transbay Transit Center
2. 16th St Mission Bay Mississippi
3. Oakdale
4. Bayshore

Feel free to chime in with your own thoughts comments or ideas.

-Brian
